Grips and Fixtures for Tensile, Compression

and Torsion Testing (MARK-10)

Mark-10 Grips and Accessories are an integral part of testing systems, designed for a wide range of tension, compression, and torque applications.

These grips and accessories can be mounted to Mark-10 force gauges, torque gauges, force sensors, load cells, and test stands, providing versatile solutions for a broad range of testing requirements.

 Let's Review Some Popular Models...

1. Tensile / Pull Grips

This category includes various grip types designed for tensile testing of cables, terminals, tapes, films, electronic components, textiles, and other materials.

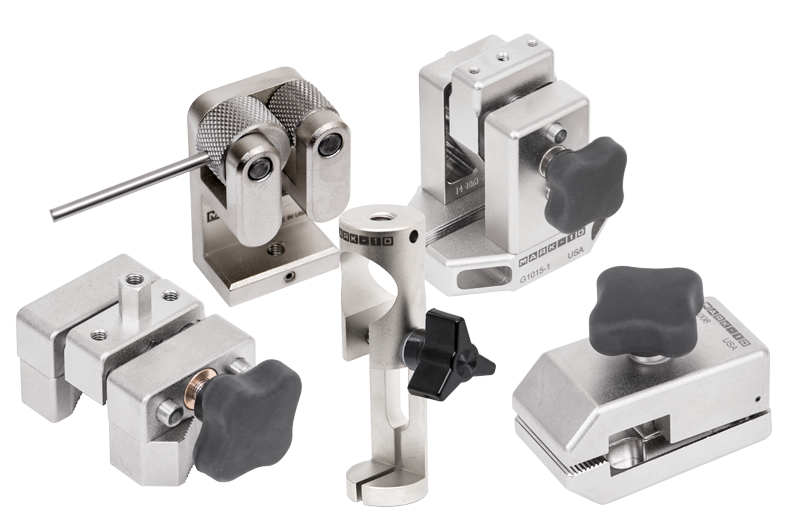

Wedge Grips (G1061 Series):

• Self-tightening wedge grips
• High-capacity design up to 2,000 lbF

Mini Wedge Grip (G1062):

• Designed for low-force applications
• Capacity up to 100 lbF

Mini Component Grip (G1003):

• Ideal for small or hard-to-access components

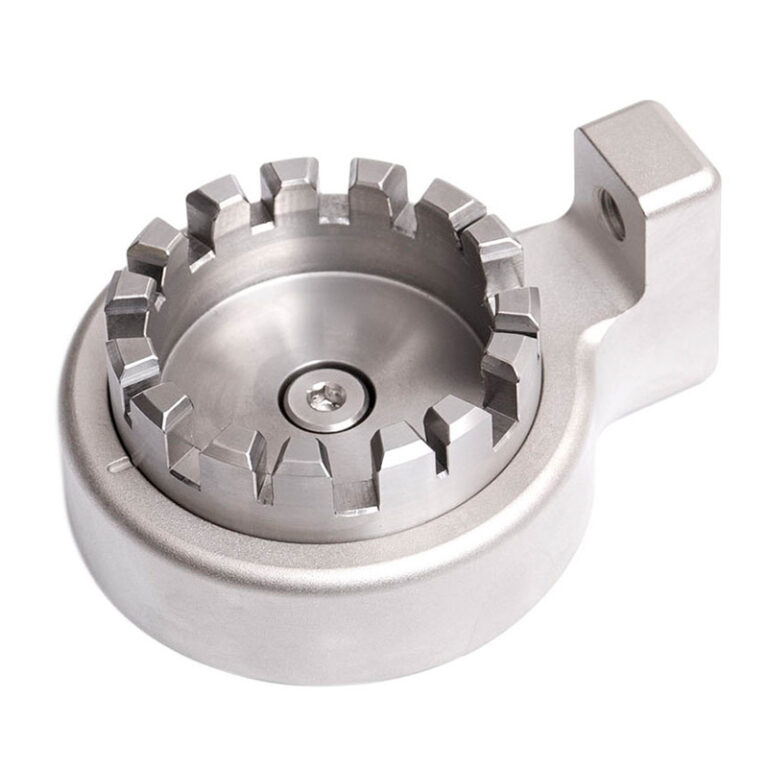

Multi-Jaw Grip (G1056):

• Suitable for round, irregular, or complex-shaped specimens

Clevis Grips (G1077, G1090):

• Ideal for ergonomic testing and spring testing applications

Ribbon Wrap Grip (G1111):

• Designed for textiles, ribbons, straps, and industrial webbing
•

2. Film, Paper, and Packaging Grips

Accessories designed for:

• Peel testing
• Thin film tensile testing
• Coefficient of friction (COF) testing
• Adhesion force measurement

Featured Models:

G1008, G1015 (1, 2, 3):

• Mechanical grips for film and paper testing

G1046:

• Sealed pneumatic grip for seal strength and elongation testing

90° Peel Fixture (G1109):

• Maintains the standard 90-degree peel angle during adhesive testing

Loop Tack Fixture (G1098):

• Designed for pressure-sensitive adhesive testing

Coefficient of Friction Fixture (G1086):

• Complies with ASTM D1894

3. Carton, Rigid Packaging, and Die-Cut Fixtures

Accessories designed for carton opening and bending applications.

Featured Models

Score Bending Fixture (G1071):

• Performs 90° carton bend testing

Opening Force Fixture (G1072):

• Measures opening force in folded carton packaging

• Score bending fixture (G1071): Para doblar cartón a 90°.
• Opening force fixture (G1072): Para medir fuerza de apertura en empaques tipo “folded carton”.

4. Bottle and Cap Testing Fixtures

• Cork Pull Fixture (G1105):

  • Designed for cork extraction testing
  • Complies with ISO 9727
  •

  Flip Cap Pull Grip (G1104):

  • Measures the force required to open flip-top caps
  •

  Universal Bottle Grip (G1023):

  • Secures bottles during torque and axial load testing
•

5. Vise Grips

Parallel-opening grips designed for tensile and compression testing.

G1013:

• Standard vise grip
•

G1101 / G1100:

• Medium and large versions
• Aluminum body with hardened jaws
•

G1106 / G1074:

• Self-centering and standard vise grips with universal mounting

6. Wire, Rope, Yarn, and Terminal Grips

A complete range of grips designed to securely hold cables, wires, filaments, ropes, and terminals.

Wire Terminal Grips (G1001 Series):

• Designed for wire terminals and crimped connections
•

Turret-Style Grips (G1076, G1093):

• Indexed wheel with multiple groove sizes
•

Dual Roller Grips (G1002, G1085):

• Serrated rollers with cam-lock mechanism
•

Filament Grip (G1078):

• Designed for very thin filaments
•

Wire and Rope Grips:

• G1102, G1103, G1092
•

High-Capacity Eccentric Roller Grip (G1094):

• Capacity up to 2,000 lbF

7. Compression and Puncture Fixtures

Accessories designed for compression, penetration, and puncture testing.

Compression Plates

• G1009

• G1009-1

• G1087

• G1087-1

• G1123 Self-Aligning Compression Plate

•

Puncture Fixtures

G1110

• Film puncture fixture

• Designed to meet industry standards

•

G1099

• Puncture fixture for gypsum and drywall testing

Food Testing Probes

Magness-Taylor Probes (G1122)

• Used for fruit firmness and food texture testing

8. Bending Fixtures (3-Point and 4-Point)

Models:

• G1095
• G1096
• G1097

These fixtures feature interchangeable rollers and are suitable for testing plastics, metals, ceramics, composites, and other materials.

9. Torque Fixtures

Accessories designed for torque testing of caps, closures, lids, and round components.

Models

• Universal V-Jaw Grip (G1053)
• Universal Cap Grip (G1058)
• Jacobs Chuck Grips (G1022 Series)

10. Hooks, Tips, and Basic Adapters

A wide range of accessories for general-purpose force testing applications.

Hooks

• G1028

• G1038

• G1035

• G1042

•

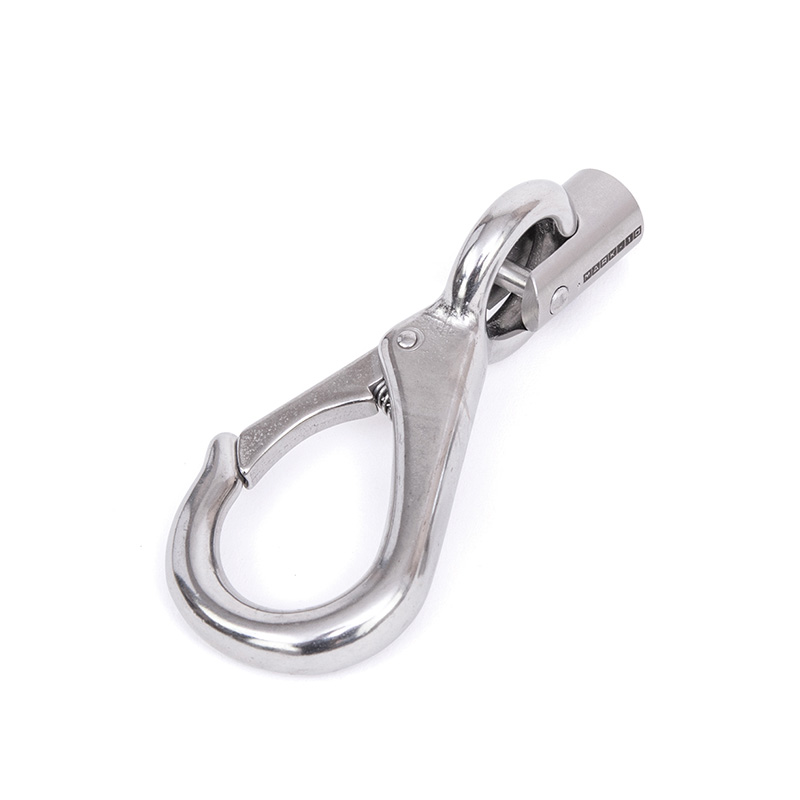

Safety Snap Hook (G1107)

Test Tips

• Flat Tips

• Chisel Tips

• Cone Tips

• V-Groove Compression Tips

•

Models include:

• G1029

• G1036

• G1025

• G1032

•

Additional Accessories

• Extension rods

• Swivel adapters

• Thread adapters

• Couplings

• Multiple thread sizes and load capacities available

   (Agrandar)

Si requiere cualquier modelo adicional o un accesorio específico, por favor háganoslo saber.

En la parte inferior encontrará nuestros datos de contacto y acceso directo al chat de atención.   ↓

Return to FORCE GAUGES AND TEST STANDS←

.

.

WT3-201M Motorized Wire Crimp Pull Tester

The WT-205M motorized wire terminal pull tester measures pull forces on wire terminals up to 200 lbF [1 kN] with accuracy and efficiency. Portable and customizable, this tester meets numerous UL, ISO, ASTM, SAE, MIL, and other standards for both destructive and non-destructive testing.

Perform pull-to-break tests, pull-to-load tests, or maintain a specified load for a set period of time (optional functions), in accordance with UL 486A/B requirements.

Programmable pass/fail limits, along with red and green indicators and audible alarms, help quickly identify non-conforming samples.

The standard adjustable terminal fixture features multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]), while the self-tightening wedge grip securely holds the free end of the wire. Optional interchangeable grips are available to accommodate a wide range of materials.

Samples may be submitted to CIENTEC for evaluation and recommendations prior to purchase.

The WT-205M stores and calculates statistics for up to 2,000 measurements, with optional date and time stamps available for each saved data point.

Data can be transferred to a PC or other data collection device via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

When a sample breaks, the tester can automatically reverse direction, save and transmit the peak force value, and auto-zero in preparation for the next test, increasing testing efficiency.

The optional Profiles function allows users to create and save test setups for quick access and repeatability.

The WT-205M includes MESUR® Lite data acquisition software. MESUR® Lite captures and tabulates either continuous or single-point data. With a single click, data can be exported to Excel for further analysis and processing.

Note: The WT-205M is compatible with most wire insulation materials.

However, to ensure mechanical compatibility, we recommend submitting wire samples for evaluation prior to purchase.

    (Agrandar)

Return to FORCE GAUGES AND TEST STANDS←



Digital Torque Gauges (Torque Measuring Instruments)



.

Mark-10 Torque Testers are highly accurate and feature-rich torque measurement instruments ideal for a wide range of applications. All torque testers measure peak torque in both clockwise and counterclockwise directions and offer selectable measurement units. Torque capacities are available from 10 ozFin up to 5,000 lbFin full scale, depending on the torque indicator model. The instruments can be used as handheld units or integrated with test stands and gripping fixtures to create a complete testing solution. All torque testers are CE marked.   We Offer the Following:

Return to FORCE GAUGES AND TEST STANDS←  Digital Torque Gauges ←

 .

Series TT01 Cap Torque Testers

Application and Removal Torque Measurement up to 100 lbFin with Ultra-Fast 7,000 Hz Sampling

The TT01 Bottle Cap Torque Tester Series is designed to measure both application and removal torque of bottle caps up to 100 lbFin [11.5 Nm].

Adjustable posts securely accommodate a wide variety of container shapes and sizes, while adjustable flat jaws are available for unique container profiles. Its rugged aluminum construction and simple, intuitive operation make it suitable for both laboratory and production environments.

Class-leading accuracy of ±0.3% and an exceptionally fast 7,000 Hz sampling rate ensure reliable and consistent results, even in high-speed testing applications.

Password protection is provided to prevent unauthorized changes to settings and calibration parameters.

The TT01 includes a variety of advanced productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and auto-zero after cap removal, memory storage for up to 1,000 readings, pass/fail indicators, and more.

Peak torque detection is particularly useful for measuring slip torque and bridge-break torque in tamper-evident closures.

The TT01 Series includes MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single-point data.

Data stored in the TT01 memory can also be downloaded in bulk, and a one-click export to Excel allows for additional data analysis and processing.

FEATURES:

• 1.25 in (31 mm) long adjustable posts accommodate a wide variety of sample shapes and sizes
• Extended post lengths and additional gripping options available
• USB, RS-232, Mitutoyo, and analog outputs
• Automatic output, data storage, and auto-zero upon bottle cap removal help automate testing processes
• First/second peak detection for slip torque and bridge-break torque testing in tamper-evident closures
• Memory for up to 1,000 data points with statistics and output options
• Password protection prevents unauthorized changes
• Programmable set-point indicators and outputs for pass/fail determination
• High-speed 7,000 Hz sampling rate accurately captures peak torque values
• Configurable audio alarms and keypad tones
• Five selectable units of measurement
• MESUR® Lite data collection software included

   (Agrandar)

¿Qué es un Torquímetro? Un torquímetro es una herramienta de medición diseñada para aplicar y controlar un torque (o par de fuerza) específico al apretar tornillos, tuercas, pernos u otros elementos de fijación.

¿Qué mide un torquímetro?   Mide el par de torsión, es decir, la fuerza que se aplica para girar un elemento. Este torque se expresa generalmente en: N·m (Newton-metro), lb·ft (libra-pie), lb·in (libra-pulgada)
