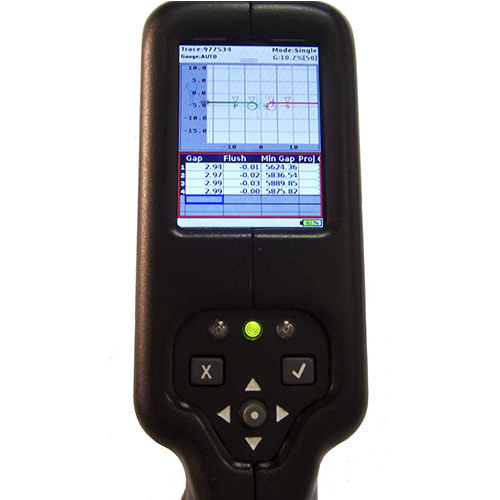

HS702 - Gap, Flush, and Radius Measurement Devices

Blue Light Sensor

The HS702 with Blue Laser Technology is the smallest and most rugged Laser Gauge sensor. It is ideal for high-volume applications such as gap/flush measurements in tail lamps, windshields, clear headlights, red and amber lenses, chrome, and glass surfaces around transparent or translucent materials, as well as gap/flush inspection on plastic or metal body panels. With its 1 GHz processor, accurate measurements are completed in less than one second.

All operations are performed within the sensor itself. An integrated battery powers the device. No cables are required.

      (Agrandar)

Return to 2D DIMENSIONAL MEASURING MACHINES ←  Gap, Flush, and Radius Measurement Devices←

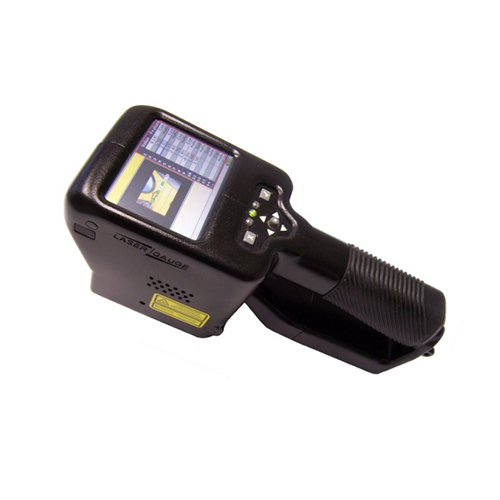

HS763 Blue Light Sensor with Cross Vector

Gap, Flush, and Radius Measurement Devices

Improving cross-vector scanning capability, the HS763 is equipped with two blue lasers that allow it to scan transparent, translucent, and opaque surfaces. This enables the HS763 to be used on automotive body panels, tail lamps, window glass, and chrome surfaces.

EThe HS763 sensor is a complete measurement system. No external components are required. Using a powerful 1 GHz processor and a unique imaging component configuration, the HS763 scans much faster than existing cross-vector sensors, capable of measuring a typical body-to-body gap in less than 1 second.

The 3.5” full-color display provides detailed surface profile graphics, and the touchscreen allows easy menu navigation and extended graphical functions..

      (Agrandar)

 .

Gap, Flush, and Radius Measurement Devices



. HS763 - Gap, Flush, and Radius Measurement Devices. Blue light sensor   The HS763 is equipped with two blue lasers that allow it to scan transparent, translucent, and opaque surfaces...   ..   ..

. HS702 - Gap, Flush, and Radius Measurement Devices. Blue light sensor   The HS702 with Blue Laser Technology is the smallest and most rugged Laser Gauge sensor. It is ideal for high-volume applications such as gap/flush measurements in rear lamps...

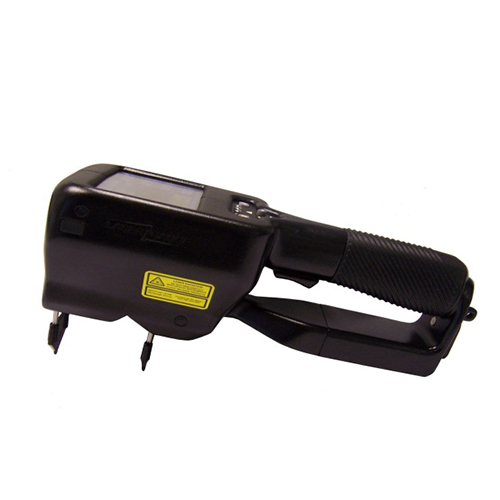

HS703 -Gap, Flush, and Radius Measurement Devices. Blue light sensor    The HS703 with Blue Laser Technology is the fastest and most versatile Laser Gauge sensor. It is ideal for measuring gap/flush values around split tail lamps, windshields, headlights, and red and amber lenses...

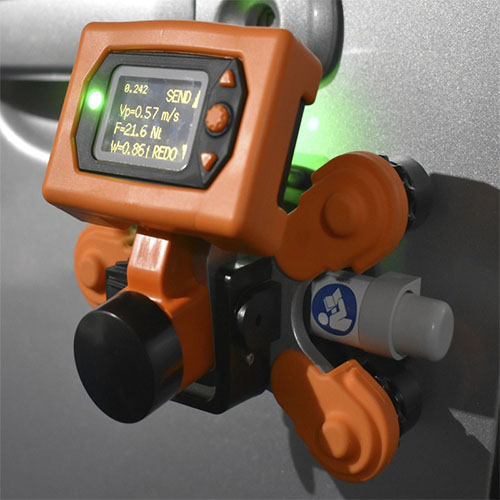

. G-Force - Wireless device for measuring force, energy, speed, and effort required to close doors   The G-Force door closing force meter allows users to measure the force, speed, and work required to close a vehicle door, tailgate, liftgate, or hood...

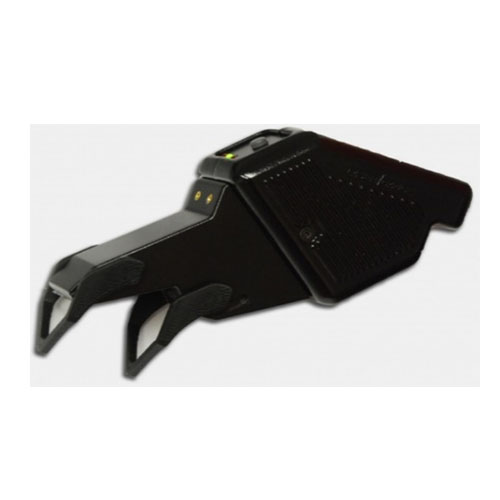

TS800 Gap, Flush, and Radius Measurement Devices. Blue light sensor for interior applications    The TS800 USB sensor with Blue Laser Technology is specifically designed to inspect and measure small features in hard-to-access areas on translucent surfaces...

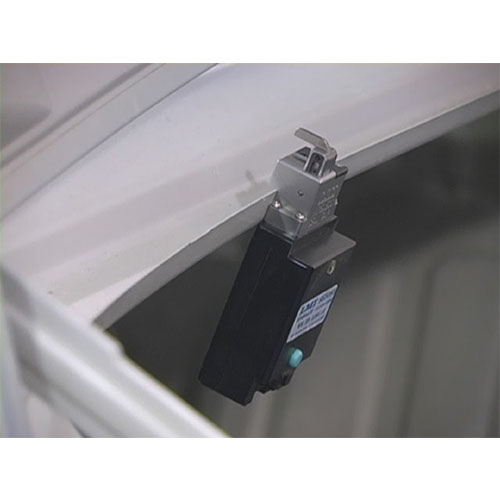

. Door Gap Measurement in Body Area   There is no longer a need to calibrate gauges, clay, feeler gauges, or thumb screws to check gaps between doors and body panels or lids and openings...   ..   ..
