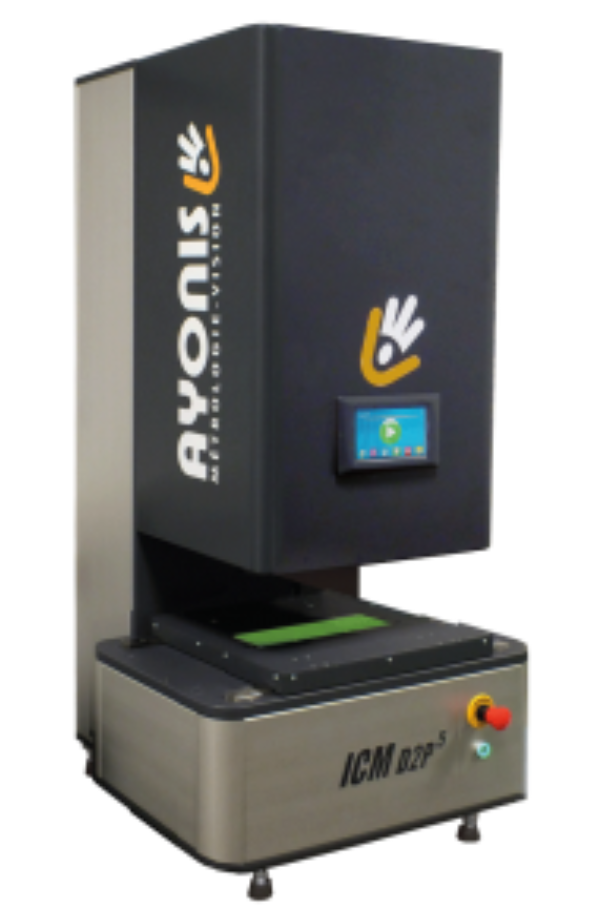

ICM D2P - 2D Video Measuring Machine

.

The ICM D2P is a high-performance optical metrology station specifically designed for the non-contact dimensional measurement of flat parts and precision components. Thanks to its robust architecture and advanced imaging technology, it is the ideal solution for users seeking speed and accuracy in quality control.

High-Stability Structure: Mounted on an aerospace-grade aluminum base, ensuring superior mechanical rigidity and exceptional thermal stability while eliminating vibrations during measurement.
Precision Optics: Equipped with a high-resolution camera and fully programmable LED lighting systems (episcopic and diascopic) to highlight even the most difficult edges to detect.
Operational Speed: Its high-speed motion system and automatic recognition algorithms allow multiple dimensions to be measured in a single capture, optimizing cycle times.
Intuitive Software: Designed for use by both metrology experts and shop-floor operators, enabling easy programming of inspection routines.
Ideal Applications: Perfect for the inspection of stamped parts, sealing gaskets, extruded profiles, printed circuit boards, and any component where 2D edge and distance control is critical.
