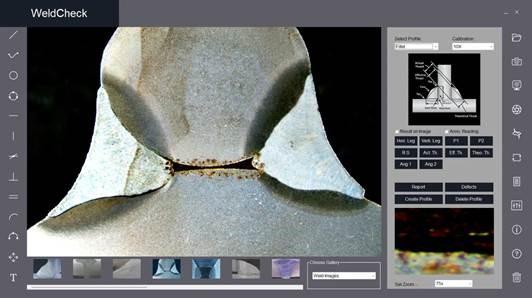

Weld Check

 Camera and Software Package

The Weld Check software is a powerful and easy-to-use tool that enhances the ability to quickly and efficiently measure critical weld features such as fillet welds, throat size, leg lengths, and penetration (Part No. WELD-CHECK).

Weld Measurement Features:

• Leg lengths
• Penetration depth
• Throat height
• Root size
• Angle measurements
• Plate thickness and weld penetration percentage
• Toe undercut

      (Agrandar)

   Return to 2D DIMENSIONAL MEASURING MACHINES ←  2D and 3D Video Measurement Systems←

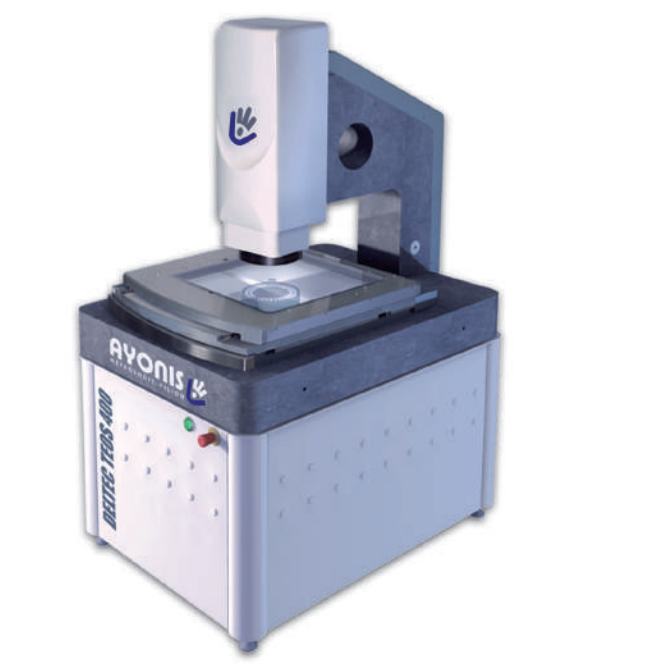

DELTEC TEOS - Standard 3D CMM

This machine combines all the tools required for your dimensional metrology needs (software package and 3D structure).

Compatible with all types of parts (automotive, mechanical, electronics, pharmaceutical, etc.) and materials (metal, plastic, rubber, glass, etc.).

Suitable for all types of inspections: first article, in-process, laboratory, incoming, outgoing, and during production.

Ability to manage multiple sensors: vision, probe, confocal.

Automatic inspection of single or multiple parts.

Machine Characteristics

• Granite monoblock column-type structure

• XY stage with cross-motion and open frame design

• Crossed roller guides

• Measurement capacities (X, Y, Z): 400 x 400 x 200 mm

• Load capacity: 20 kg

• Encoder resolution: 0.5 microns

• X, Y, Z speed: up to 75 m/s max

Measurement Uncertainties (2σ)

• XY E2: (± 2.5 + 5L/1000) microns (vision, probe)

• Z E1: (± 4 + 5L/1000) microns (vision)

• Z E1: (± 2.4 + 5L/1000) microns (probe)

 Vision System:

• 1.3 MPX high-definition black & white digital camera

• Programmable lighting systems:
• 8-sector episcopic white LED
• Collimated green diascopic LED
• Motorized zoom with 6 indexed positions
  Second wide-field camera for automatic multi-part inspection
  Simplified positioning via laser pointer
  Magnifications x30 to x200 (reference full-field display on a 22” screen)
•



      (Agrandar)

   Return to 2D DIMENSIONAL MEASURING MACHINES ←  2D and 3D Video Measurement Systems←

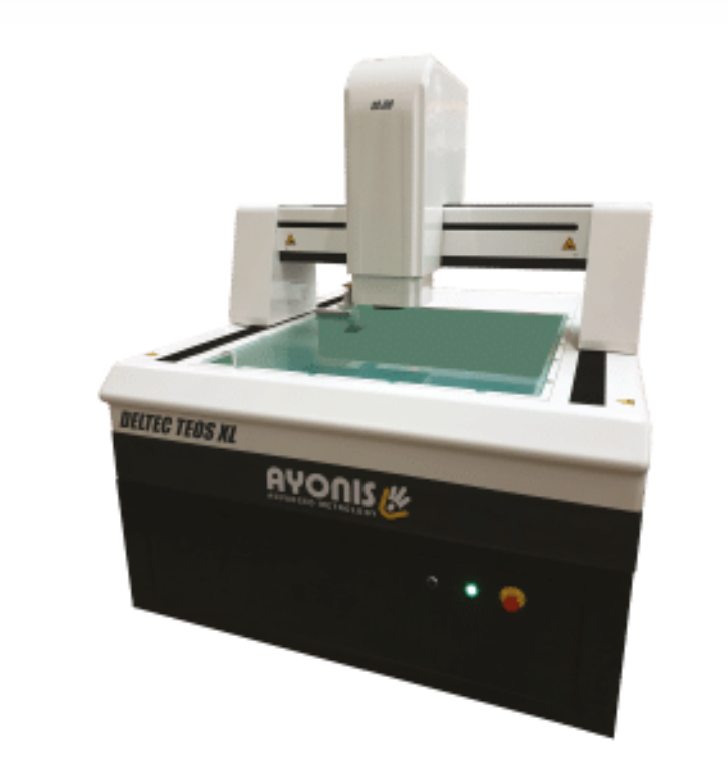

DELTEC TEOS XL - Large Capacity CMM

This machine combines all the tools required for your dimensional metrology needs (software package and 3D structure).

Compatible with all types of parts (automotive, mechanical, electronics, pharmaceutical, etc.) and materials (metal, plastic, rubber, glass, etc.).

Suitable for all types of inspections: first article, in-process, laboratory, incoming, outgoing, and during production.

Ability to manage multiple sensors: vision, probe, confocal.

Automatic inspection of single or multiple parts.

FOTOS: granite structure, confocal sensor, multisensor head, stylus changer, dual-screen workstation, DELTEC TEOS XL, automated 3D multisensor measurement system.

Machine Characteristics

• Mobile gantry structure
  Base and gantry in solid granite
  Linear roller guides
  Ball screws and DC motors

• Measurement capacities (X, Y, Z):
• 600 x 800 x 200
• 800 x 1000 x 200
• 1200 x 1000 x 200

• Load capacity: 20 kg
  Encoder resolution: 0.5 microns
  X, Y, Z speed: up to 200 m/s max

Measurement Uncertainties (2σ)

• XY E2: (± 4 + 5L/1000) microns (vision, probe)

• Z E1: (± 4 + 5L/1000) microns (vision)

• Z E1: (± 2.4 + 5L/1000) microns (probe)

 Vision System:

• 1.3 MPX high-definition black & white digital camera

• Programmable lighting systems:
• 8-sector episcopic white LED
• Coaxial LED
• Collimated green diascopic LED
• Motorized zoom with 6 indexed positions

• Laser pointer-assisted positioning

• Magnifications x30 to x200 (reference full-field display on a 24” screen)
•



      (Agrandar)

   Return to 2D DIMENSIONAL MEASURING MACHINES ←  2D and 3D Video Measurement Systems←

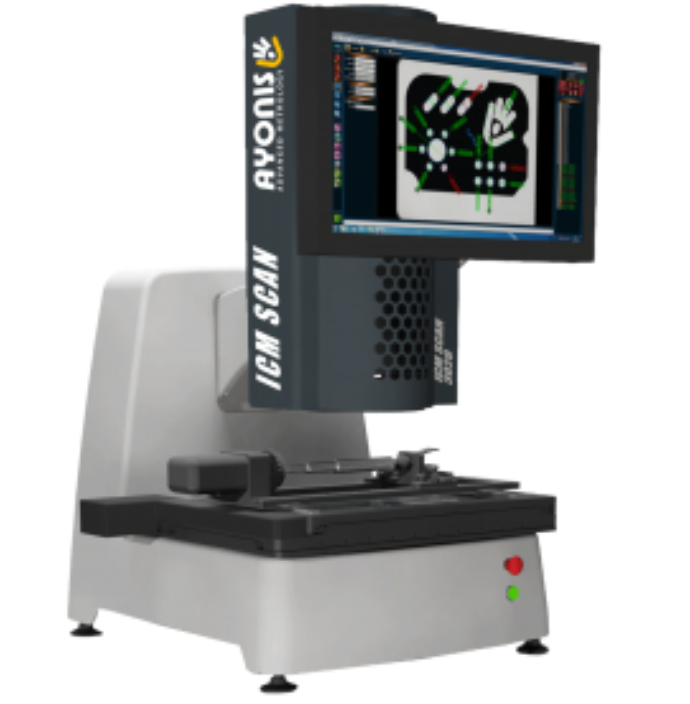

ICM Scan - Digital Profile Scanner

100% simple, easy to use, and efficient. Equipped with a 4x telecentric lens and a 5 MP camera. Maximum measurement range of 300 x 200 mm. Programming based on 2D CAD files. Large 22” touchscreen. Designed to operate in a production environment.

Features

• Digital profile projector
• 5 MP color camera
• Working area: 200 x 300 mm
• Image stitching
• LED lighting system
• ICM software package
