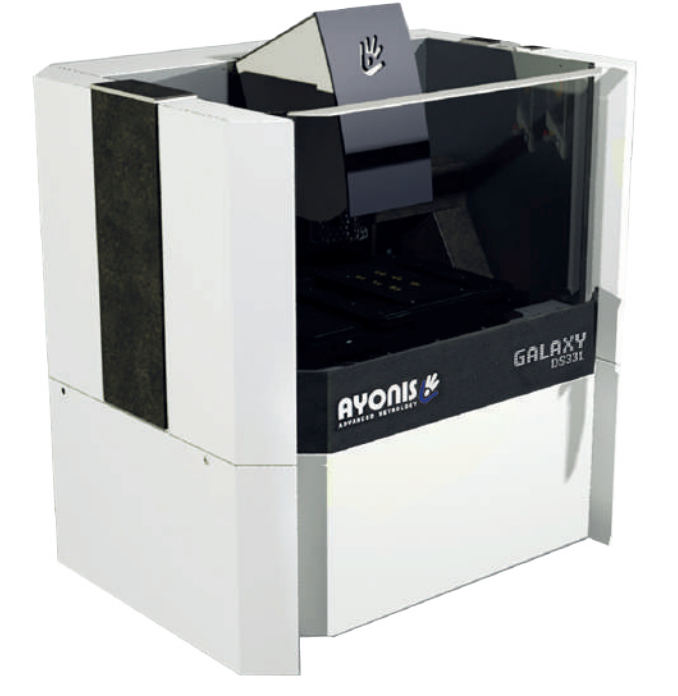

GALAXY DS 311 - Automated 2D / 3D Micro-Metrology System

---



2D and 3D metrology for small parts. Multiple measurement technologies integrated into a single automated system. Designed for production environment inspection. Offline programming (based on CAD files). Recording and statistical analysis of measurements to optimize traceability and quality control.



Machine Structure

• Solid granite structure

• High-precision cross-motion XY table with linear motors

• XYZ measurement range (upper/lower): 300 x 300 x 100 / 50 mm

• Metrological structure isolated by anti-vibration pads

• Structure compatible with production environments

• Load capacity: 20 kg

• Encoder resolution: 3 microns

• X, Y, Z speed: up to 200 m/s (depending on configuration)



Main Measurement Sensor



• Line sensor based on Confocal Chromatic technology (white light sensor)
• Single or double-sided configuration
• Up to 350,000 measurement points per second per side
• Two sensor types available to adapt to needs (high precision / high capacity)





Secondary Measurement Sensor

• Cámara digital de alta resolución de 5,20 o 71 Mpx
• Configuración mono o multicambio
• Dispositivos de iluminación programables
• LED episcópico rojo sectorizado
• LED diascópico colimado verde



Measurement Uncertainties (2σ)

• XY: from 2.5 microns

• Z height (1 side): from 0.5 microns

• Z thickness (2 sides): from 1 micron









---
