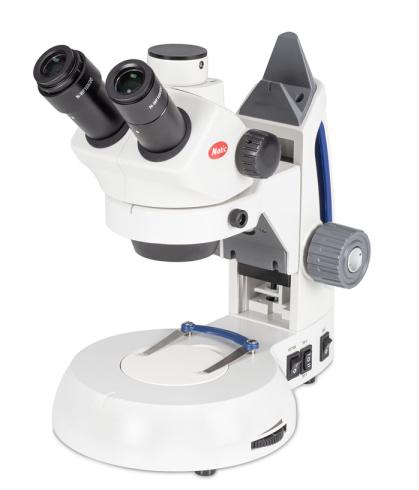

Silver39Z-T - High Performance Zoom Stereo Microscope

Microscopio estéreo de solución versátil para aplicaciones complejas

  .

La serie SILVER39Z-T de microscopios estéreo incorpora una relación de zoom de 1:6.7, una de las más grandes del sector, con una distancia de trabajo estándar de 113 mm en el interior de un sistema óptico estéreo Greenough. Además, el sistema estándar proporciona un aumento máximo de 50X [con el estándar de oculares 10X] y para focalización garantizada a través de los aumentos.



Diseñado para el uso a largo plazo, el SILVER39Z-T está disponible

en un 35 ° y 60 ° ángulo de observación formato para adaptarse a la aplicación y el entorno de instalación.



Asistir en prevención a la fatiga es el sistema con punto de mira alto de los oculares estándar 10 veces, lo que permite al usuario asumir una postura más cómoda cuando se utilizan los usuarios de microscopios y anteojos para observar sin el temor a rayar los lentes.



Los oculares estándar ofrecen un campo de visión fo 30.7mm para cubrir más de la muestra en menos tiempo.







   Return to 2D DIMENSIONAL MEASURING MACHINES ←   Roughness Testers and Contour Measurement Equipment←

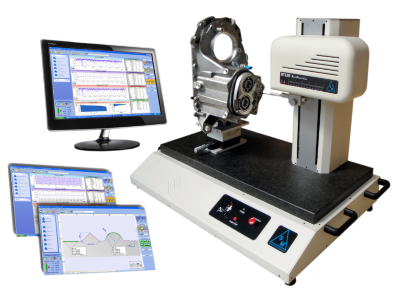

RT120 - Roughness Laboratory Testing Profilometer

  .



The RT120 was designed based on the need to characterize surface roughness and micro-profiles in parts, including complex geometries, using a single device, thanks to the RT120 “all-in-one” concept and the Profile Studio analysis software. The Profile Studio software was developed to be extremely easy for the operator to use.



All functions required for profile and roughness characterization are available in the right-hand toolbar and are organized into categories, each with a different color. New dimensions and roughness analyses can be added to the same profile and displayed on the same screen, allowing the operator to perform a complete part analysis with a single measurement. Thanks to the auto-comparison function, it is possible to reconstruct all dimensions and geometric tolerances of a reference profile on a new profile, thus saving time in series inspection.



Roughness parameters are calculated according to the latest standards such as ISO 4287, ISO 13565-1 and -2, ISO 12085, and VDA 2007, for a total of 70 calculated parameters.





No tiene un plugin pdf, pero puede descargar el archivo pdf.





      (Agrandar)





 .

Roughness Testers and Contour Measurement Equipment



..

Specialized in high-tech instrument engineering, SM s.r.l. manufactures an advanced range of solutions for surface characterization and dimensional error control. Its catalog stands out for the development of precision roughness testers, profilometers for detailed contour analysis, and roundness measuring instruments, all designed to meet the most demanding industrial quality assurance standards.



The technological offering is complemented by proprietary data acquisition systems and processing devices, which allow accurate interpretation of each measurement. Thanks to its technical infrastructure, including certified reference standards and climate-controlled rooms, the company ensures maximum reliability of its equipment, also offering calibration and certification services to guarantee full traceability of each instrument in the global market.



Available Models:





 ....



 .

RT120 – Laboratory Roughness Profilometer

The RT120 was designed to meet the need to characterize surface roughness and micro-profiles on even complex parts using a single device, thanks to its “all-in-one” RT120 logic and Profile Studio analysis software...



..


btn mas o

  ..

.

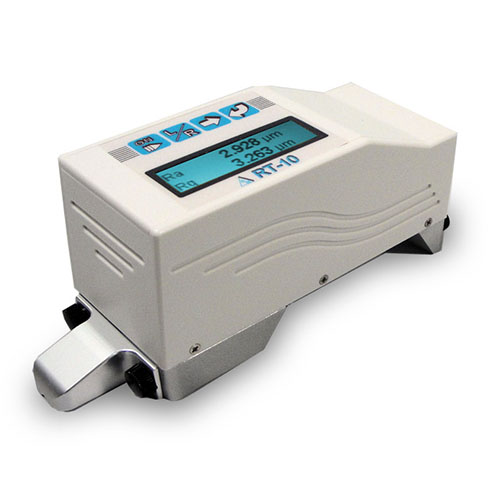

RT10 – Pocket Roughness Tester



The RT10 was born from the success of the RT10G; easy to use and reliable as a basic version, it also performs advanced analyses typical of laboratory instruments. In addition to 31 roughness parameters, it displays roughness profile graphs and primary profile data...







btn mas o



RT10G – Graphical Pocket Roughness Tester



The RT10G is unique in its category because it integrates both a calculation unit and measurement procedure, making it the first “all-in-one” roughness tester. Extremely compact and easy to use, it allows convenient positioning for measurements...





btn mas o



.


RT90G – Pocket Roughness Tester



The RT90G is unique in its category because it integrates a calculation unit and measurement procedure, making it the first “all-in-one” roughness tester. Extremely compact and easy to handle, it allows comfortable positioning during use...







btn mas o





PGS200 – All-in-One Profilometer

A new-generation instrument capable of performing simple operations to characterize complex part profiles, thanks to its modern “all-in-one” logic. With just a few steps, it is immediately ready and calibrated for measurement...





btn mas o
 .

RTP80 – Portable Roughness Tester



The RTP80 roughness tester is easy to handle and use, allowing characterization of even the most complex surfaces in a simple and convenient way. Its bright 5.7” color touchscreen, combined with an icon-based interface, allows the operator to adjust measurement parameters easily...



..


btn mas o

  ..





   Return to 2D DIMENSIONAL MEASURING MACHINES ←  2D and 3D Video Measurement Systems←





GALAXY DS 311 - Automated 2D / 3D Micro-Metrology System

  .





2D and 3D metrology for small parts. Multiple measurement technologies integrated into a single automated system. Designed for production environment inspection. Offline programming (based on CAD files). Recording and statistical analysis of measurements to optimize traceability and quality control.



Machine Structure

  • Solid granite structure
  • High-precision cross-motion XY table with linear motors
  • XYZ measurement range (upper/lower): 300 x 300 x 100 / 50 mm
  • Metrological structure isolated by anti-vibration pads
  • Structure compatible with production environments
  • Load capacity: 20 kg
  • Encoder resolution: 3 microns
  • X, Y, Z speed: up to 200 m/s (depending on configuration)



Main Measurement Sensor



  • Line sensor based on Confocal Chromatic technology (white light sensor)
  • Single or double-sided configuration
  • Up to 350,000 measurement points per second per side
  • Two sensor types available to adapt to needs (high precision / high capacity)





Secondary Measurement Sensor

  • Cámara digital de alta resolución de 5,20 o 71 Mpx
  • Configuración mono o multicambio
  • Dispositivos de iluminación programables
  • LED episcópico rojo sectorizado
  • LED diascópico colimado verde



Measurement Uncertainties (2σ)

  • XY: from 2.5 microns
  • Z height (1 side): from 0.5 microns
  • Z thickness (2 sides): from 1 micron





   No tiene un plugin pdf, pero puede descargar el archivo pdf.





      (Agrandar)



Return to METALLOGRAPHY, PETROGRAPHY, MICROSCOPY, AND IMAGE ANALYSIS←  Metallographic Sample Preparation Equipmen (PACE)←

Abrasive Cutters ←





MEGA-M250 Abrasive Cutter

  .



10" (250 mm) MEGA-M250 Manual Abrasive Saw.



Features:



  • Diamond blade size: Maximum diameter of 10 inches (250 mm)
  • Cutting capacity: Maximum diameter of 3 inches (75 mm)
  • Wheel feed: Yes
  • Table feed: No



Dimensions (L x W x H):



  • 28 x 29 x 24 inches (hood closed)
  • 28 x 35 x 31 inches (hood open)



Table size: 8.25 x 8.9 inches (210 mm x 230 mm)

Operation: Manual

Cooling unit: 16 gallons (60 liters)

Motor power: 3 HP (2.2 kW)



Motor speed:



  • 2895 rpm at 208–380V / 50 Hz
  • 3475 rpm at 208–380V / 60 Hz
  • 2895 rpm at 440–480V / 50 Hz
  • 3475 rpm at 440–480V / 60 Hz
  •

Optional variable speed (MEGA-M250V)



Electrical specifications: Standard 208Y three-phase (380V or 480V three-phase optional), 50/60 Hz



Weight: 115 kg (252 lbs)



No tiene un plugin pdf, pero puede descargar el archivo pdf.





      (Agrandar)



  1. MEGA-T400 Abrasive Cutter (PACE)
  2. MEGA-T350 Abrasive Cutter (PACE)
  3. PICO 155 Precision Cutter (PACE)
  4. Mounting Presses (PACE)

Page 15 of 48
