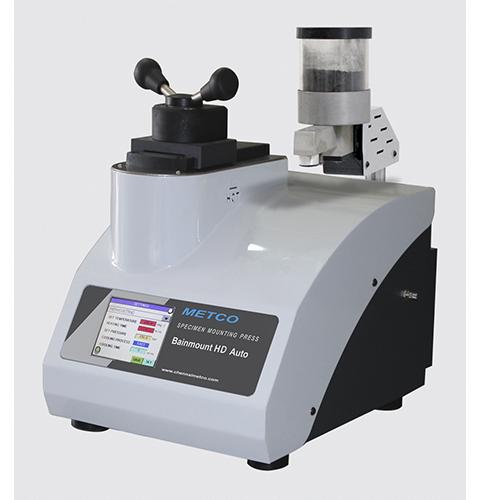

Bainmount HD Auto
Automatic Hydraulic Mounting Press with Auto-Dosage System
.
Hydraulic Mounting Press with Automatic Doser
PRODUCT CODE: MPHAD007A
Features:
- Hydraulic mounting press with automatic dosing system.
- Interchangeable molds: 1 1/4", 1 1/2", and 2" diameter.
- 1600-watt heater, single-phase.
- LCD parameter display.
- Ideal for the preparation of transparent mounts, epoxy, and bakelite.
- Preset programs and storage of mounting parameter data (up to 25 programs).
- Automatic water cooling system.
- Machine dimensions: 430 mm x 570 mm x 510 mm.
Temperature, heating time, mounting pressure, cooling time, ram up/down movement, and cycle start can all be set and controlled through the touchscreen panel.
Modern metallographic practices now require variable heating, cooling, and high pressure during molding to achieve better results, such as high mount hardness and improved edge retention.
(Agrandar)Una prensa de montaje manual neumática es una máquina industrial que utiliza aire comprimido para generar fuerza lineal, controlada manualmente por el operario para ensamblar, estampar, remachar o troquelar piezas. Combina la fuerza neumática con la operación manual (frecuentemente bimanuall por seguridad) para procesos repetitivos de precisión, siendo más rápida y ergonómica que una prensa manual mecánica.
