Measurement, CAD Comparison, and Reverse Engineering Software

---



Verisurf CAD is the foundation of all Verisurf suites and makes our software unique in the metrology industry. Verisurf software is different because it not only imports all major CAD file formats; it is also a complete 3D modeling application.



Verisurf is the only metrology software that includes wireframe modeling, NURBS surface modeling, Parasolid solid modeling, 2D drafting, and Model-Based Definition (MBD) that automates manufacturing.



Import large and complex CAD models with intelligent GD&T for rapid model-based inspection planning and quality reporting.



Select measured features, modify values for design intent as needed, and then export with a single click to CAD for automated design and 3D modeling.



METROLOGY productivity tools to quickly define coordinate systems, correct surface normals, locate holes, and create 3D PDF files.

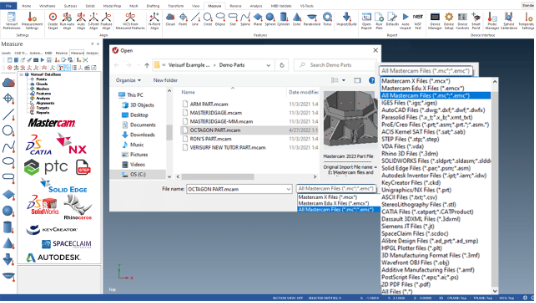

• Standard file formats include: VDA, IGES, STEP, STL, Parasolid, and ACIS.
  Native file formats included are: SolidWorks, SolidEdge, AutoCAD, Inventor, SpaceClaim, KeyCreator, and Rhinoceros. Optional formats include: CATIA, NX, and Creo.
• Easily create, import, and edit any CAD model: solid, surface, or wireframe.

•
