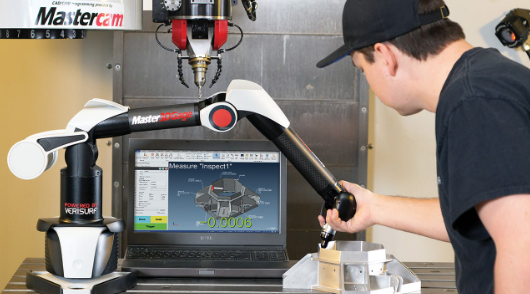

Measurement, CAD Comparison, and Reverse Engineering Software – Measure

---



Measure part features and complex profile geometries using real-time deviation visualization between CAD and measured data to make decisions in real time. Generate inspection reports with a single click in standard or customized formats that can be shared and integrated into your quality management system.



The Measure module device interface operates and optimizes the most popular measurement systems, making them more productive and ensuring a better return on investment. You can also import externally captured data and process it according to the nominal CAD model and tolerances. Even run offline datasets with predefined feature extraction, data processing, and constraints.



• The intuitive workflow-based environment enables fast inspection of both 2D drawings and 3D models.
• Enhanced visual assistance and feedback for real-time analysis of dimensions, profile, position, and GD&T.
• Single-point probing and high-volume non-contact scanning of large point cloud datasets.
