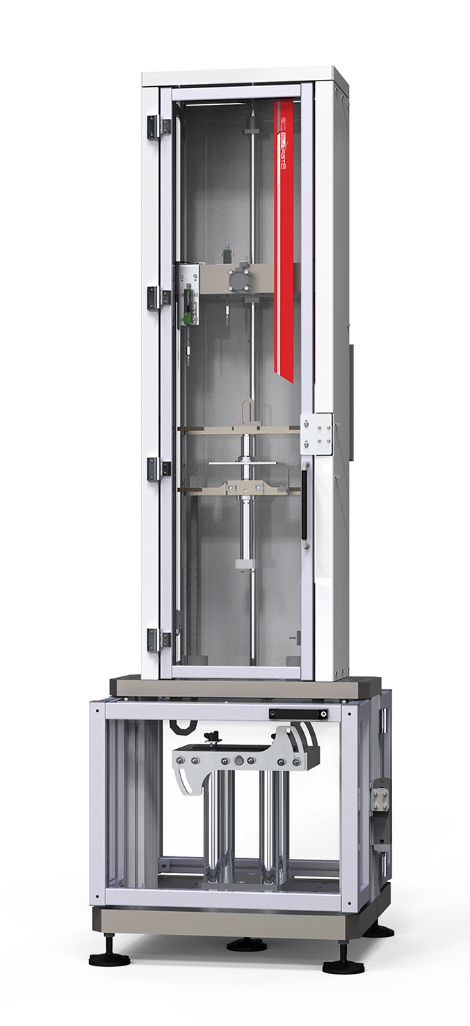

Drop Weight Tower DW 1000



High reliability

High efficiency

Modular structure for the wide range of applications

Automated weight recovery and speed reading system





Features

STEP Lab impact test systems are test systems for performing single and multiple axial impact tests
on standardized products and specimens. The systems allow impact energies ranging from 0.2 to 2000 J,
allowing a wide range of products and materials to be tested, thanks also to the large volume available
for sample placement. We provide highly competitive facilities thanks to the wide range of ac-
accessories such as load cells, anti-rebound systems, spring accelerators, and the wide range of impactors
instrumented and specimen holders















Fall Hight  [m] 0,05 – 1,4
 Impact velocity with acceleration  [m/s]  10,0
 Impact velocity  [m/s]  5,0
 Speed measurement    with optical sensor
 Energy range  [J] 1000
 Fall weight  [kg]  70
 Fall weight with acceleration  [kg] 20 (10 m/s)
 Acquisition speed (load signal)  [MHz]  3.5
 Signal strength resolution  [BIT]  16
 Foot load point  [N/cm2]  16000
 Compressed air  [bar]  6-8
 Dimensions W x D x H  [mm]  800/1400×3500
 Test Area W x D x H  [mm] 800/1400×650
 Machine weight  [kg]  1100
