The Physical Test Solutions IT Series of impact testers offers turn – key solution packages that include the basic accessories to get started right away. No need to decipher what hammers, tools, and other “recommended” accessories have to be ordered, PTS has it all included! Furthermore, PTS low capacity impact testers offer automatic release mechanism. All PTS impact testers are manufactured in an ISO 9001 certified facility. There are three types of pendulum impact tests; Izod, Charpy and Tensile Impact. The first two are the most common. As a practical guideline, Izod tests are most used in low energy applications for plastics and non-metallic materials, whereas Charpy tests are usually seen in high energy tests in metallic materials.|
|
|
|
+52 33 3817 0140 | +52 33 3817 8122
|
We Offer the Following: |
|
|
|
|

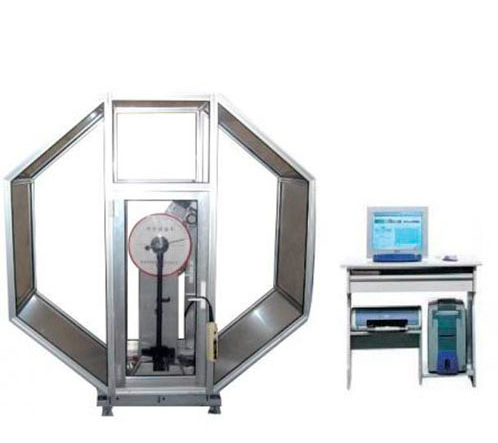

High Capacity Impact Testers, for plastic material applications, like metalic materials, standard ranges in plastic materials from 5 to 50 Joules, Izod and Charpy methods.
The chamber is designed to prepare Charpy notched Impact Test specimens for low temperature tests. The unit uses compressor cooling technology made up of two sections (Low temperature grade and high temperature grade).
It utilizes the heat balance principle and cycle stirring method to achieve constant temperature cooling of impact specimens for reliable performance. When the chamber is connected to the impact tester to perform low temperature impact tests, the specimen can be delivered automatically.
-Temperature control range: + 30- -35ºC.
-Constant temperature accuracy: = ± 0.5ºC.
-Temperature dropping speed: + 30ºC - 0ºC, + 30ºC - -20ºC, -20ºC - -35ºC.
-Dimension: 800x510x750 mm.
-Effective working space: 120x120x80 mm.
-Chamber holds more than 60 specimens.
-Specimen dimension: 10x10x55 mm.
-Digital timer; 1 sec -100 minutes.
-Cooling media: Alcohol or other.
-Power supply: 110V / 220-240V, 50/60 Hz.
The DT Series drop weight impact testers are suitable for drop weight tear test to various kinds of ferrites, especially to pipeline steel.
The unit is equipped with different weights and anvils and can perform other types of impact tests according to customers’ special request.
-Impact energy is adjusted by lifting height and the number of weights.
-The buffer is equipped to absorb the residual energy after breaking the specimen to protect the weight and anvil from destroying.
-The unit is equipped with safety features, such as safety net, safe pin for maintenance and hanger locking.
-The tester also has a specimen-carrying system, anti-falling devise for the specimen, centering set-up to guarantee quick, accurate and reliable tests.
-Impact hammer.
-Specimen-carrying devise.
-Anti-falling of mechanism for the specimen.
-Centering devise.
-Safety net.
In the pop up window you can download the Catalog (if it is not shown, please refresh or click F5)
| |
|

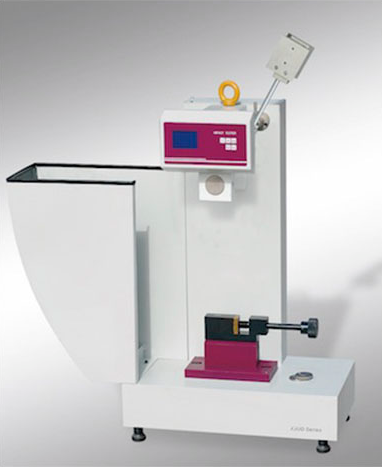

The IT Series of low capacity impact testers are used to determine the impact toughness of plastic, glass steel, plastic pipe, strong nylon, ceramic and electric insulator materials.
Physical Test Solutions (PTS) impact testers conformed to standards; ISO179, 180, GB/T1043, 1843, ASTM D256, JB8762, JB8761, ISO9854, GB18743.
