Universal Testing Machines

.

Universal Testing Machines - LaborTech

Three decades of innovation, growth and success have brought us to the world’s leading position in the development and production of testing machines and equipment. From a small local manufacturer, we have grown into a global player that brings Czech quality to the whole

world. Our products are used in aviation, automotive, construction and other industries. From the first steps to the present, our goal remains the same: to provide solutions that set the standards of quality, reliability and accuracy.

We Offer the Following:

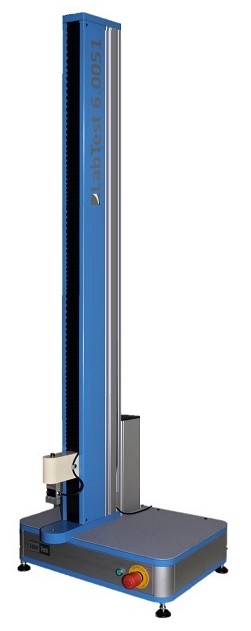

Static Electromechanical Testing Machines

The electromechanical testing machines of the E1 Series in one-column benchtop design up to 5kN are designed for safe and efficient testing of materials and whole products in tension, pressure, bending, shearing and torsion.

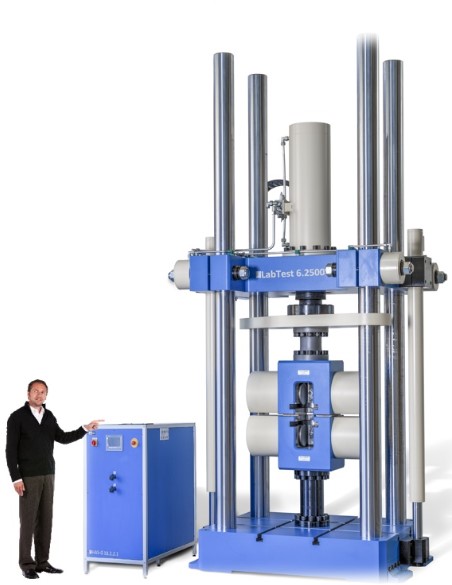

Servohydraulic Testing Machines

The dynamic hydraulic test benches of the H.10 series are designed for forces up to 10MN and use a platform of T-grooved plates or load-bearing structures.

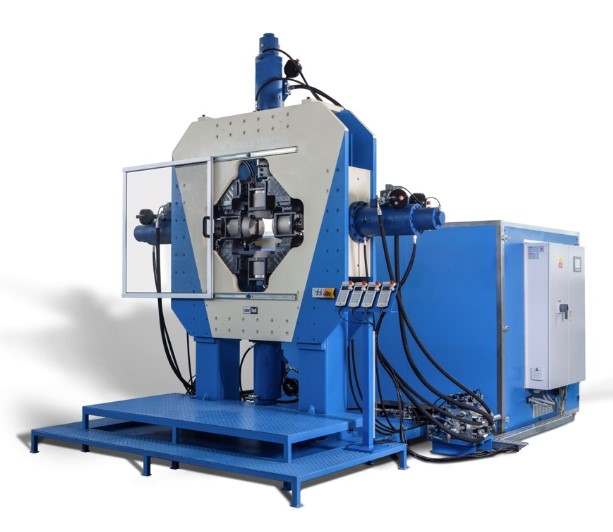

Dynamic and Fatigue Testing Machine

Impact hammers of the CHK series. 1 in a table-top design with a nominal energy of up to 50J, thanks to its accuracy, reliability, ergonomic layout and originality, it is among the world leaders in the field of impact tests.

Testing Machines for Long Term Test Creep

X RUNNER automated robotic test systems are designed for precise and fast sample handling in conjunction with the electromechanical or hydraulic testing systems labTest E series and H series. These robotic systems are produced in several modifications and are designed for automatic testing of flat samples.

Torsional Testing Machines

X RUNNER automated robotic test systems are designed for precise and fast sample handling in conjunction with the electromechanical or hydraulic testing systems labTest E series and H series.

Automated Testing Machines

X RUNNER automated robotic systems designed for precise and fast handling of notch toughness samples in conjunction with LABORTECH impact hammers of the CHK series.

ros. Espectrometro de emision op maquina universal ensayo compuline FMC

tica, Analizador de carbono |hidrogeno | azufre. Gap & flush, sistemas de medicion, di

AUTOMATIC WORKING STATIONS FOR THE MEASUREMENT OF CNG BOTTLES HARDNESS

Automatic stationary hardness testers designed for HB and HV measurement. Built-in production and testing lines, they are used for 100% hardness check according to EN ISO 6506-1. These systems can measure e.g. CNG bottles after heat treatment, seamless pipes, round forgings etc. The conveyor system can be adjusted according to the dimensions, shape and weight of the measured piece and requirements.

CHARACTERISTICS:

Sturdy frame construction with vertical pressure actuator with linear guide. Horizontal unit with feedback support, milling, injection, and CCD evaluation unit.
Conveyor system for feed and rotation of the piece and selection of parts according to hardness, IO, NIO + and NIO-
Integrated unit of pieces description – IMAJE
Total Taktzeit of input line – 50 secs for one injection (Up to 12 injections in different positions)
SIEMENS Simatic S7 1500 control system incl. LCD, integrated PC incl. FESTTest software
Operation via touch LCD screens

ros. Espectrometro de emision op maquina universal ensayo compuline FMC

tica, Analizador de carbono |hidrogeno | azufre. Gap & flush, sistemas de medicion, di

POSITIONING MANIPULATORS FOR TESTING LAMELLAS

Double positioning manipulator X-SPRINTER designed for loading and unloading lamellas from the ABCControl lamella inspection machine with automatic selection of NIO parts according to the given error. The line consists of several separate parts. LABORTECH ensures the functionality of the entire line

CHARACTERISTICS:

Handling of the lamellas is ensured by SCHNEIDER positioning manipulators.
Identification and history of parts through optical inspection ensuring correct riveting of the lamella.
X RUNNER controller in conjunction with positioning manipulators – SIEMENS Simatic S7 1500 incl. LCD
Total Taktzeit line at the input – 12sec

ros. Espectrometro de emision op maquina universal ensayo compuline FMC

tica, Analizador de carbono |hidrogeno | azufre. Gap & flush, sistemas de medicion, di

POSITIONING MANIPULATORS FOR SPRING TESTING

Complex automated line designed for heat treatment of PKW spring including 100% mechanical spring control with automatic correction according to a special dynamic algorithm.   The line consists of several separate parts. The guarantor and creator of the line was LABORTECH. automatedautomatedautomated

CHARACTERISTICS:

Complete line with induction hardening and sandblasting system, camera optical inspection of the spring, mechanical inspection of the spring …
Handling of the slats is ensured by positioning manipulators SCHNEIDER and FESTO.
X RUNNER controller in conjunction with positioning manipulators – SIEMENS Simatic S7 1500 incl. LCD
Total Taktzeit at the input – 13 sec

ros. Espectrometro de emision op maquina universal ensayo compuline FMC

tica, Analizador de carbono |hidrogeno | azufre. Gap & flush, sistemas de medicion, di

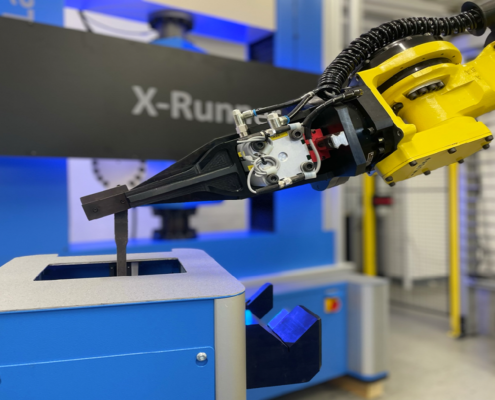

ROBOTIC WORKPLACE FOR IMPACT TESTS

X RUNNER automated robotic systems designed for precise and fast handling of notch toughness samples in conjunction with LABORTECH impact hammers of the CHK series. These robotic systems are produced in several modifications depending on how many samples will be tested within 24 hours, what types of samples and at what temperatures.  Based on these requirements, the robotic workplace is precisely specified.

CHARACTERISTICS:

Modular and economical system with the possibility of customization according to customer requirements.
Low operating and maintenance costs including 100% machine utilization (3 shifts).
Loading the sample into the impact hammer up to 5 sec including breakage. Max. weight 5 kg.
Control system X RUNNER – SIEMENS Simatic S7 1500 incl. LCD – RUNNERTest v. 2 and robot FANUC, HYUNDAY, KUKA.
Automated testing of notch toughness samples in accordance with EN ISO 148-1, EN ISO 148-2, ASTM E23.
