Return to 3D MEASUREMENT AND TESTING SERVICES← Shop-Floor Coordinate Measuring Machines and Special Applications←

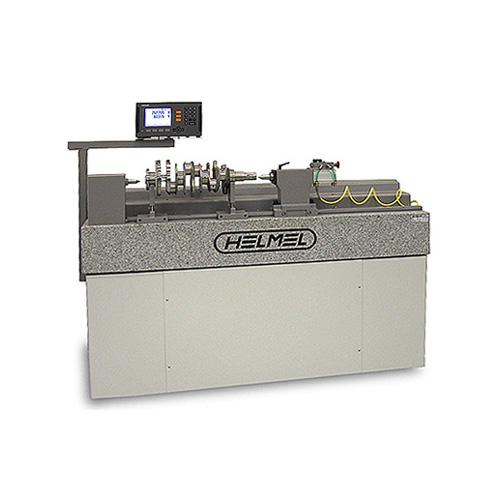

Checkmaster Shaft – Shaft Measuring Machine (SMM)

Efficient Shaft Measurement on the Production Floor

Designed for all types of shafts, Helmel coordinate measuring machines have proven their capability decade after decade. Our SMM systems are designed to efficiently check lengths, steps, grooves, and diameters quickly using standard hard probes.

They are widely used for both large and small shaft components in motors, turbines, transmissions, pumps, copiers, and general shaft measurement applications. Consider how the Helmel manual shaft measuring machine can improve your quality and efficiency while reducing rejection rates. Your customers will definitely approve.

Companies such as Xerox, Kodak, GM, Chrysler, John Deere, and Cummins have already found the benefits of shop-floor shaft measurement.

Checkmaster Shaft SMM machines are robust, durable manual systems designed for production environments. They use mechanical probes and a digital position display to achieve precise measurements.

They are available in one- or two-axis configurations for parts ranging from 12” to 60” in length and up to 12” in diameter.

They allow fast and easy measurement of lengths, steps, grooves, diameters, runouts, and hole locations.

These SMM machines are reliable even in demanding conditions and are easy for shop-floor personnel to learn and operate.

Linear accuracy: 0.00018" + 0.000006" per inch

Model table:	Description	X axis	Y axis
SMM-12	Checkmaster SMM 12"	12" (300 mm)	6" (150 mm)
SMM-20	Checkmaster SMM 20"	20" (500 mm)	6" (150 mm)
SMM-25	Checkmaster SMM de 25"	25" (635 mm)	6" (150 mm)
SMM-30	Checkmaster SMM 30"	30" (762 mm)	6" (150 mm)
SMM-40	Checkmaster SMM 40"	40" (1016 mm)	6" (150 mm)
SMM-50	Checkmaster SMM 50"	50" (1270 mm)	6" (150 mm)
SMM-60	Checkmaster SMM 60"	60" (1524 mm)	6" (150 mm)

NOTE: Optional manual or pneumatic headstock and tailstock available.

Return to Universal Testing Machines ← Dynamic Universal Testing Machines | Fatigue← Universal Servohydraulic Dynamic Fatigue Testing Machines (Sw+b)←

Multipurpose Servo-hydraulic Soil Fatigue Testing Machine with Bottom-Based Actuator LFV Series up to 630 k

These testing systems cover the full spectrum of dynamic, fatigue, and monotonic applications, including TMF (thermo-mechanical fatigue), LCF (low cycle fatigue), fracture mechanics, HCF (high cycle fatigue), high strain rate testing, and component testing.

These servohydraulic systems are essential units in many laboratories in the fields of quality control, product development, and scientific research.

LFV servohydraulic testing systems feature a modular design, covering the full range of testing requirements and allowing configuration for a wide variety of test setups.

With more than 45 years of experience in the production of a wide range of dynamic and fatigue servohydraulic testing systems in various force capacities and configurations—meeting the requirements of quality control, production, and product research and development—our machines incorporate numerous features and proven technologies that ensure operational efficiency, safety, and reliable testing with minimal downtime.

.

All LFV servohydraulic systems integrate reliable w+b servo-controlled hydraulic actuation with high-speed, high-resolution closed-loop digital controls, a wide portfolio of complementary accessories, and complete Dion7 application software packages. This makes these systems suitable across the full spectrum of static and dynamic testing, including: tensile • bending • high-cycle fatigue • fracture toughness • crack propagation • environmental testing • component durability • compression • thermo-mechanical fatigue (TMF) • low-cycle fatigue (LCF) • fatigue crack growth • K1C / J1C • stress and strain relaxation • component strength.

Features:

- 100 kN servohydraulic fatigue testing machine
- 250 kN servohydraulic fatigue testing machine
- 400 kN servohydraulic fatigue testing machine
- 630 kN servohydraulic fatigue testing machine
- 500 kN servohydraulic fatigue testing machine with T-slot lower table
- 100 kN servohydraulic testing system with all-temperature grips and environmental chamber
- 100 kN servohydraulic system with electrical resistance heating
- 250 kN servohydraulic fatigue testing machine with fracture mechanics accessories
- 250 kN servohydraulic fatigue testing machine with high-temperature accessories
- Vacuum system for fracture mechanics with 50 kN fatigue rating
- Vacuum fracture mechanics configuration
- High-frequency LCF configuration
- TMF testing configuration

(Agrandar)

Return to 3D MEASUREMENT AND TESTING SERVICES← Shop-Floor Coordinate Measuring Machines and Special Applications←

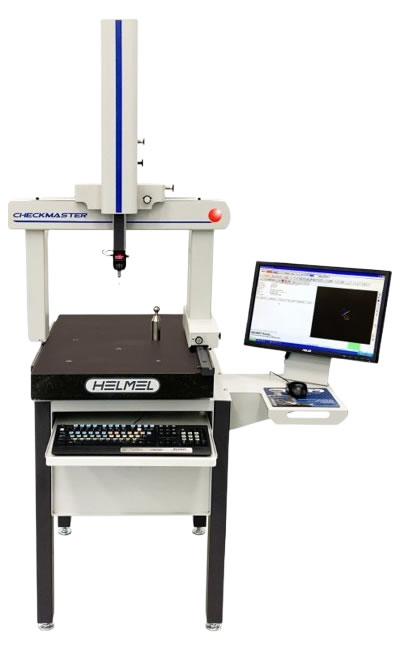

Checkmaster – Benchtop Coordinate Measuring Machine

A compact manual CMM: ideal for first article inspections or small batch volumes

The compact Checkmaster is a benchtop CMM ideal for laboratories or production plants.

Hardened stainless-steel ways and steel scales in the structural frame provide uniform linear expansion, minimizing thermal errors.
Its low cost allows you to implement a competent inspection system across multiple locations in your plant.

Measure, scan, and digitize. Imagine managing geometric tolerances such as flatness, concentricity, and true position with ease and confidence.

Checkmaster is an indispensable multi-purpose tool that allows you to inspect prints, monitor product quality, analyze process variables, troubleshoot production issues, verify tooling, generate dimensions and CAD elements for unknown parts, and professionally document your quality.

Each CMM is tested at the factory for repeatability and accuracy to ensure compliance with ASME B89.4.1a-1998. Accuracy is intrinsic: Checkmaster is manufactured by Helmel to be physically straight, flat, square, and true without the need for costly software error mapping to make it correct.

Each Checkmaster is designed and packaged for fast and safe customer installation. All key components are protected during shipping using specially designed supports, which—once removed—ensure the CMM is ready for its first inspection.

(Agrandar)

Return to 3D MEASUREMENT AND TESTING SERVICES← Shop-Floor Coordinate Measuring Machines and Special Applications←

Microgage - Benchtop Coordinate Measuring Machine

High-precision CMM performance, now accessible to everyone.

Microgage advantage:
Until Microgage, this level of 3D precision cost 3 to 10 times more, and options were limited to much larger machines. The need for the highest precision is often found in the smallest parts, yet there was no alternative but to purchase a relatively large CMM for these tasks, wasting money and valuable space.

The right mini CMM at the right time.

The bench-top Microgage (8”x12”x8”) is modeled after the most precise machine tools in the world, featuring a rigid fixed-bridge steel design. Like machine tools, mechanical bearings and guideways, along with motors and scales, are enclosed and protected for durability, stability, and long-term value.

The bearings are rated within 120 nanometers in X and Y, and the entire structure is internally and externally stress-relieved, thermally protected, and vibration damped.

Accuracy is intrinsic: there is no software error compensation, only pure physical precision. If high accuracy in small and medium parts is your focus, Microgage is the simple solution, whether in the lab or production.

Si busca alta precisión en piezas pequeñas y medianas, Microgage es la solución, ya sea en el laboratorio o en producción.

¡WHEN SIZE MATTERS! Small Size – Ultra-High Precision

In a world becoming increasingly micro, and with inspection moving directly to the production floor, the Microgage tabletop CMM has arrived.

A scanning solution in a compact package.

The Microgage can be configured for scanning operations by adding options such as:

Renishaw SP25M probing system
Helmel PM1 probe head adapter
UCC2 universal CMM controller

Technical specifications:

Modelo				128-801
Type				DCC (Direct Computer Control)
Measurement range XYZ				8″x12″x8″
Overall size without stand				20.3” W x 32” D x 38” H
Weight				260 lbs.
Maximum part weight				20 lbs.
Scale resolution				.000004″
Repeatability				.00008″
MPEp				2,3 µm
MPEe				2,9+L/1000 µm

(Agrandar)

Return to Universal Testing Machines ← Dynamic Universal Testing Machines | Fatigue← Test Specimen Preparation Equipment for Tensile Testing Machines←

TWIN ZS 600 + 1000 CN Die-Cutting Press for Sheet Metal Tensile Test Specimens

Prensa troqueladora personalizada con 2 áreas de trabajo: TWIN ZS600+1000 (fuerzas 600 + 1000 kN).

Las múltiples herramientas entregan con un solo golpe:

Probetas de tracción de chapa en dirección de laminación
Probetas de tracción de chapa transversal a la dirección de laminación
Probetas de tracción de chapa en diagonal a la dirección de laminación
Blanco circular para medir la capa de zinc
Punzones para muestras marco en C para muestras de tracción de chapa
Rectificadora de muestras
