Multi-Station Voltage Tester

This system provides an ideal solution for high-volume testing of tensile, peel, tear, heat seal, and adhesive film properties, including plastic films, composite films, flexible packaging materials, adhesives, tapes, paper, glue, rubber, and more.

.

Features:

• The 6-station design allows six tests to be performed simultaneously.

1. • Complies with international standards: ISO 37, ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113.
   • High accuracy of 0.5%, flexible range, and easy interchangeability.
   • Microcomputer controllers with pneumatic specimen grips, ensuring easy operation and reliability.
   • Optional test speed controlled by software, with automatic and rapid return after test completion.
   • Multiple test modes including tensile, elongation, heat sealing, tearing, and peeling.
   • Provides analysis of nominal force, modulus of elasticity, stress, and more.
   • Computer-controlled process, user-friendly operation.
   • Powerful software with multiple curve display methods, curve grouping, statistical analysis, and maximum, minimum, average, and standard deviation analysis.
   • Test results can be displayed in international (SI), metric, or imperial units without manual conversion.
   • Test curve reports allow zoom in/out for detailed data analysis.
   • Auto-zero function, intelligent fault alarm, overload protection, and multi-level safety protection switches for safe and reliable operation
   •



Return to 3D MEASUREMENT AND TESTING SERVICES←  High-Precision Scanners - Photogrammetry Scanners ←

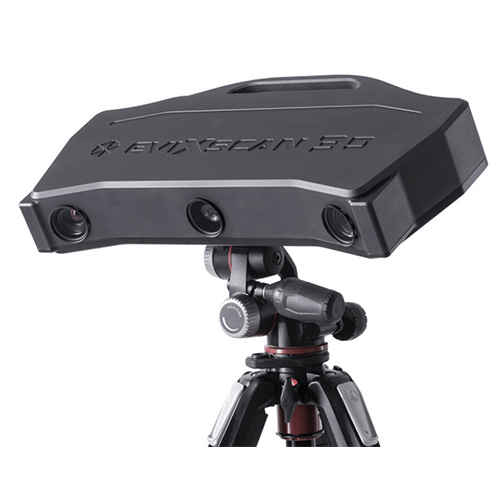

EviXscan 3D Optima+ – High-Precision 3D Scanner

The eviXscan 3D Optima integrates the latest technological advances to deliver reliable and cost-effective scanning solutions. It uses a blue LED light source to produce sharp and uniform images in various environments, making it ideal for large-scale industrial applications.

• Cameras: 2 × 5 MPix

• Accuracy: 0.0183 mm

• Light source: Blue LED

Included:

• EviXscan Suite 3D

• Tripod

• Calibration plate

• Protective case

• ToolKit Box compatibility

• IP31

• High-precision 3D scanning of small and medium-sized objects.

• The system’s construction allows scanning in variable environments.

• Its high point density is useful for capturing small, medium, and highly detailed objects.

• Useful for: quality inspection, reverse engineering, and rapid prototyping.

Return to Universal Testing Machines ←  Special Applications for Universal Testing Machines (PTS)←

Creep and Burst Testing Machines

The electronic creep and stress rupture testing machine series is mainly used for creep tensile and compression tests, stress rupture tests, and testing of both metallic and non-metallic materials.

It can also perform standard tensile tests, as well as low-cycle fatigue tests and creep-fatigue tests with the appropriate accessories.

Features:

• • Utilizes an electromechanical servo system with a screw-driven transmission, replacing the traditional lever-loading mechanism. The system can automatically switch between constant load and constant stress control modes.
  • Electronic load measurement system for load and strain, with digital display.
  • Computer software is used for data acquisition, processing, and analysis.
  • Models are available in single-column or multi-column configurations, depending on testing capacity.
  • Environmental chambers, grips, and extensometers are available to meet various material testing requirements.

 .

Main Specifications:

• • Maximum load capacity: 10 kN, 20 kN, 50 kN, 100 kN, 200 kN, 500 kN
  • Load measurement accuracy: ±1%
  • Strain measurement: via LVDT or extensometer, selectable ranges of ±1, ±3, ±5, ±10 mm
  • Strain measurement accuracy: ±0.5% F.S.
  • Long-term constant load/strain control accuracy: ±1%
  • Crosshead speed range: 0.01 – 50 mm/min
  • Temperature options:
    • Split furnace: 300 – 1000 °C
    • Environmental chamber: -70 – +350 °C
    • High-temperature vacuum furnace: 800 – 1600 °C
  • Temperature fluctuation: less than ±2 °C

Return to 3D MEASUREMENT AND TESTING SERVICES←  High-Precision Scanners - Photogrammetry Scanners ←

eviXmatic – Automated 3D Scanning and Inspection System

Designed and developed by Evatronix, eviXmatic is a four-axis automated measurement and scanning system that enables the full automation of quality inspection report generation. eviXmatic was created for use in precise and repetitive measurement applications and quality inspection tasks, and as such it can be integrated into automated or robotic production lines.

.

eviXmatic is a docking station for eviXscan 3D scanners, performing full-field, non-contact, high-precision object measurements. The eviXmatic scanner can also be used independently as a standalone scanning system.

.

Technical Data

Maximum scanned object dimensions: 250 × 650 × 250 mm

Maximum load capacity (object placed on rotary table axis): 30 kg

Maximum load capacity (object not centered on rotary table axis, e.g., near table edges): 10 kg

Number of axes: 4

Object movement:

Rotary table: 360°
Horizontal rotation: 700 mm linear movement

Desplazamiento del escáner 3D:
vertical: movimiento lineal de 800 mm

pivote: -10 ° ÷ 85 °

3D scanner movement:Vertical:

800 mm linear movement
Pivot: -10° ÷ 85°

Device dimensions:
Length: 1.443 m
Width: 0.515 m
Height: 1.234 m

Device weight: 51 kg
Rotary table diameter: 0.45 m
eviXmatic power: 230 V AC, 200 W

Power supply:
Quadro HD scanner: 230 V AC, 90 W HD
Optima scanner: 230 V AC, 36 W
