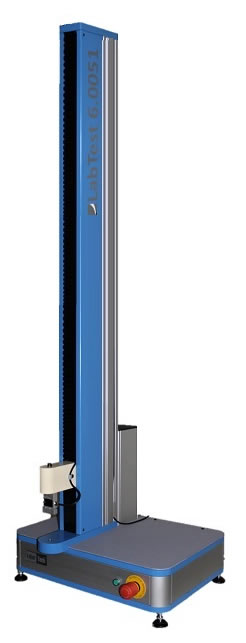

Single-Column Testing Machines . The E1 Series electromechanical testing machines, featuring a single-column benchtop design with capacities up to 5 kN, are designed for safe and efficient testing of materials and finished products under tension, compression, bending, shear, and torsion. This product line is characterized by an open-frame structure and, depending on the model, allows testing of plastics, metals, composite paper, polyurethanes, and more. These systems are engineered to provide maximum reliability, even in the most demanding mechanical material testing tasks.

Testing Machines with Tabletop and Support Frames    The E2 Series electromechanical testing machines, available in dual-column benchtop and floor-standing configurations with capacities up to 100 kN, are suitable for both research and development as well as routine quality control in laboratories and production processes.       ..

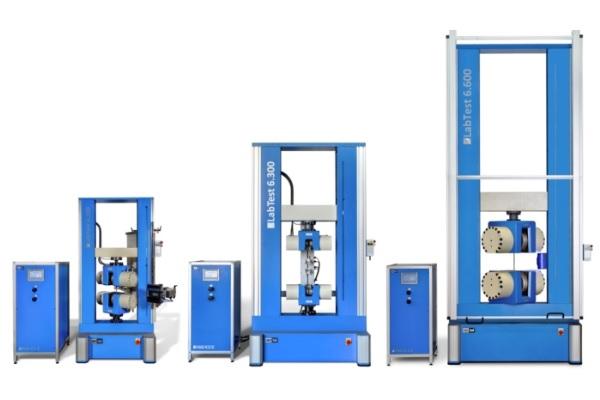

Vertical Frame Testing Machines   The E3 Series electromechanical testing machines, featuring floor-standing designs with two or four columns and capacities up to 600 kN, are suitable for both research and development and standard quality control in laboratories and production operations.

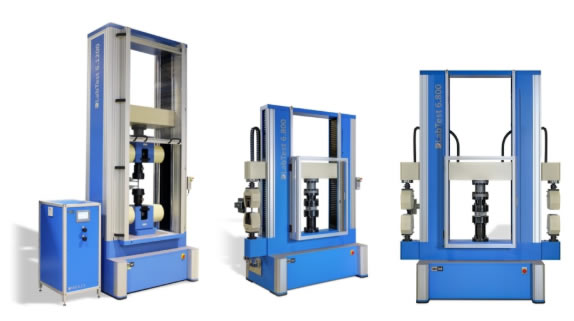

High-Capacity Testing Equipment   The E4 Series high-capacity electromechanical testing machines, with a four-column floor-standing design and capacities of up to 2000 kN, are suitable for both research and development and standard quality control in laboratories and production processes. These machines can be used safely and efficiently for testing materials and products under tension, compression, and bending conditions. They are primarily designed for testing metals and high-strength materials.

Back to Universal Testing Machines ←    LaborTech-Universal Testing Machines←



Torsion Testing Machines



Vertical Angular Torsion . The vertical angular torsion system is designed for torsion testing in a vertical configuration, making it ideal for testing materials or components that require axial clamping from both the upper and lower ends.   This type of equipment allows the application of torsional load and precise measurement of rotation angle, torque, and material response under controlled angular loading conditions...

Horizontal Angular Torsion   The KM.2 series electromechanical horizontal torsion testing machines, featuring a gantry design and torque capacities of up to 10,000 Nm, are primarily designed for measuring torque and friction torque, including rotation angle, on both components and complete products.   They also allow testing through the zero point, enabling bidirectional torsion testing...       ..

Back to Universal Testing Machines ←    LaborTech-Universal Testing Machines←  Electromechanical Statics←

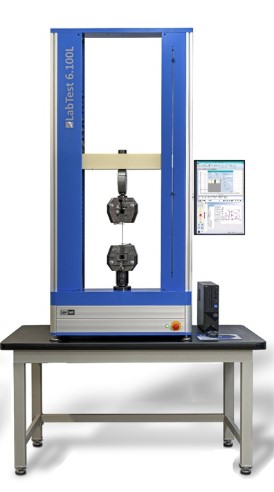

Double Column Testing Machines

The E2 Series electromechanical testing machines, available in both benchtop and floor-standing versions with a dual-column design and capacities of up to 100 kN, are suitable for both research and development (R&D) and routine quality control in laboratories and production processes.

Thanks to the wide range of available configurations (various heights and widths) and compatibility with a broad selection of accessories, these machines can be used safely and efficiently for:

Tensile, compression, bending, shear, and torsion testing of materials and products such as plastics, metals, composites, paper, polyurethanes, and more.

E.2 SERIES FEATURES

1. • Robust vertical frame design with high rigidity, mechanical strength, and durability, featuring an integrated linear guide system, ideal for off-axis loading.
   • Exceptionally high stiffness and mechanical resistance combined with a high level of ergonomics.
   • Quiet and precise AC servo drive with low noise and high resolution, with capability for force and position closed-loop control.
   • E2 Series machines comply with all applicable CE directives for machinery and equipment and operate according to the latest safety functions in accordance with EN ISO 13850:2015.
   • Automatic sensor identification operating within accuracy classes according to EN ISO 7500-1 and ASTM E4, with linearization capability.
   • Controlled by EDCi series measurement and control electronics with a sampling rate of 2.5 or 10 kHz and an analog signal resolution of ±250,000 divisions (20 ms).
   • Comprehensive test evaluation and management through Test&Motion material testing software.
   • Expandable with protective covers, safety barriers, and additional accessories.

 .

 .

   (Agrandar)

Back to Universal Testing Machines ←    LaborTech-Universal Testing Machines←  Electromechanical Statics←

Electromechanical Testing Machines (Vertical Structure)

The E3 Series electromechanical testing machines, featuring floor-standing designs with two or four columns and capacities of up to 600 kN, are suitable for both research and development (R&D) and standard quality control in laboratories and industrial processes.

Combined with a wide range of accessories, these machines can be used safely and efficiently to perform tensile, compression, bending, shear, and torsion tests on materials and products such as plastics, metals, composites, paper, polyurethanes, and more. Models are available in capacities of 100 kN, 200–250 kN, 300 kN, 400 kN, 500 kN, and 600 kN.

E.3 SERIES FEATURES

• Robust vertical frame design with high rigidity, mechanical strength, and durability, featuring an integrated linear guide system, ideal for off-axis loading.

1. • Exceptionally high stiffness and mechanical resistance combined with a high level of ergonomics.
   • Quiet and precise AC servo drive with low noise and high resolution, with capability for force and position closed-loop control.
   • Machines comply with all applicable CE directives for machinery and equipment and operate according to the latest safety functions in accordance with EN ISO 13850:2015.
   • Automatic sensor identification operating within accuracy classes according to EN ISO 7500-1 and ASTM E4, with linearization capability.
   • Controlled by EDCi series measurement and control electronics with a sampling rate of 2.5 or 10 kHz and an analog signal resolution of ±250,000 divisions (20 ms).
   • Comprehensive test evaluation and management through Test&Motion material testing software.
   • Expandable with protective covers, safety barriers, and additional accessories.

 .

 .
