Return to METALLOGRAPHY, PETROGRAPHY, MICROSCOPY, AND IMAGE ANALYSIS← Metallographic Sample Preparation Equipment ← Metallographic Grinding Machines ←

Bainline H

Floor Model Grinding and Polishing Machine

PRODUCT CODE: BGH005

Características:

For pre-grinding metallurgical samples and large metal sections
Rigid floor model construction
Work area: 150 X 250 mm
Dual-speed mechanism for mechanical operation
Low vibration design
1 HP three-phase motor, 1440 rpm
Endless abrasive belt size: 150 mm X 1220 mm
Constant tension spring loaded system
Aluminum pulleys with belt drive mechanism
Simplified belt release mechanism
Easily removable dust cover system
Power supply: 415 V / 50 Hz (R + Y + B + N + E)
Machine size: 700 X 500 X 1100 mm

For flat and coarse polishing prior to fine polishing. Samples should be ground with 60, 80, or 120 grit after cutting/mounting.

(Agrandar)

Una prensa de montaje manual neumática es una máquina industrial que utiliza aire comprimido para generar fuerza lineal, controlada manualmente por el operario para ensamblar, estampar, remachar o troquelar piezas. Combina la fuerza neumática con la operación manual (frecuentemente bimanuall por seguridad) para procesos repetitivos de precisión, siendo más rápida y ergonómica que una prensa manual mecánica.

Una esmeriladora (o amoladora) es una herramienta eléctrica, de banco o manual, que utiliza un motor para girar discos o muelas abrasivas a altas revoluciones. Se emplea principalmente para afilar, cortar, desbastar, lijar o pulir materiales como metal, madera y plástico. Son esenciales en talleres para dar forma, quitar óxido o eliminar rebabas.

Return to METALLOGRAPHY, PETROGRAPHY, MICROSCOPY, AND IMAGE ANALYSIS← Metallographic Sample Preparation Equipment ← Metallographic Grinding Machines ←

Bainline Twin WET

Dual Wheel Grinding and Polishing Machine

PRODUCT CODE: TBG011

Dual grinding belts
Water cooling system
Belt centering mechanism
Corrosion-resistant powder-coated MS base
SS cover

Features:

Motor: 1 HP three-phase motor
Motor speed: 1440 RPM
Grinding belts: 100 X 915 mm
Electrical interlocking system
Drain outlet: Right and Left, Ø 40 mm
Water valve: Right and Left
Simplified belt release adjustment mechanism
Power supply: 415 V / 50 Hz (R + Y + B + N + E)
Machine size: 670 X 680 X 290 mm

For flat and coarse grinding or polishing prior to fine grinding. Samples should be ground with 60, 80, or 120 grit after cutting/mounting.

(Agrandar)

Return to METALLOGRAPHY, PETROGRAPHY, MICROSCOPY, AND IMAGE ANALYSIS← Metallographic Sample Preparation Equipment ← Metallographic Grinding Machines ←

Bainline GP - Grinding and Polishing Machine

PRODUCT CODE: BG010

Features:

Robust bench-top model for pre-polishing metallurgical samples
Motor: 0.5 HP single-phase, 1440 RPM
Endless belt size: 100 mm x 915 mm
Aluminum tension pulley mechanism
Simplified belt replacement and alignment mechanism
Machine size: 560 X 350 X 230 mm
Work area: 100 X 190 mm
Easily removable dust cover system
Power supply: 230 V / 50 Hz (1 + N + E)

.

For flat and coarse grinding prior to fine grinding. Samples should be ground with 60, 80, or 120 grit after cutting/mounting.

(Agrandar)

Return to METALLOGRAPHY, PETROGRAPHY, MICROSCOPY, AND IMAGE ANALYSIS←

Metallurgical Microscopes - PTS-METCO

Physical Test Solutions (PTS) microscopes provide the ideal complement for any laboratory.

With a microscope designed for every field of application, PTS offers the right microscope for a wide range of analytical tasks.

We offer the following options:

....................────────.....................

PA53MET

Motic Scientific Microscopes

Flexible, high-performance optical system for a wide variety of inspection tasks. Clear and detailed images are provided for accurate analysis....

.......................────────........................

Zoom6050

Stereo Zoom Microscopes

Equipped with high-quality

optical components that provide

sharp contrast, vivid imaging,

and a flat image with great

depth of field...

....................────────.....................

Zoom 6745

Stereo Zoom Microscopes

Provides a high-quality optical

system and a stable operating

system. Complete accessories

and diversified configuration

options are available.....

......................────────......................

MJ6302

Vertical Metallurgical Microscope

The MJ6302 series vertical

metallurgical microscope is

suitable for observing the

surfaces of opaque objects...

.....................────────......................

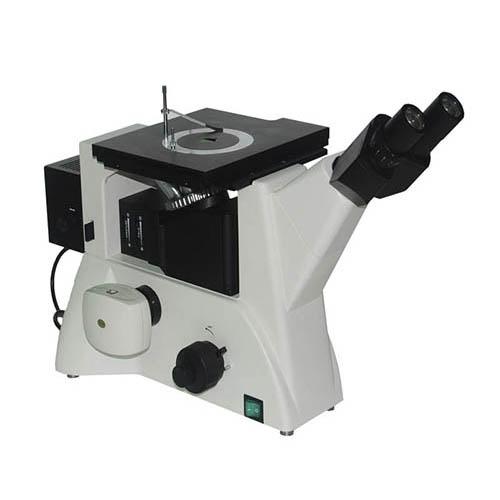

MJ6409

Inverted Metallurgical Microscope

Equipped with the Infinity Optical

System and long working distance brightfield and darkfield objectives,

along with a DIC observation

system...

Un microscopio es un instrumento óptico o electrónico diseñado para amplificar la imagen de objetos o estructuras tan diminutos que son invisibles para el ojo humano, como células, bacterias o microestructuras de materiales.

Los microscopios metalográficos detectan fallas estructurales en metales, mientras que los estereoscópicos optimizan la inspección tridimensional en electrónica. En biología, el modelo óptico compuesto es el estándar para el análisis celular y bacteriano. Finalmente, los sistemas SEM ofrecen resolución extrema para el estudio detallado de topografía y composición de superficies.

Return to METALLOGRAPHY, PETROGRAPHY, MICROSCOPY, AND IMAGE ANALYSIS← Metallurgical Microscopes (PTS) ←

PA53MET Series Scientific Microscopes Motic

Redefining Perfection and Precision

Vertical Inspection Microscopes

The PA53MET features a flexible, high-performance optical system designed for a wide variety of inspection tasks. Clear and vivid images are provided through premium-quality objective lenses and illuminators designed with aspherical lenses. A variety of observation methods allow operators to easily obtain the required images for multiple applications.

Customizable Optical and Illumination Systems.

The reflected light illuminator provides various observation methods such as BF, BF/DF, and DIC to meet all user requirements.

Combined BF/DF and ND Filter Switch

With the BF/DF converter switch located at the front, changing observation modes becomes easier and more convenient. The interlocked ND filter protects the operator’s eyes from sudden brightness changes.

Polarizer and Analyzer Filters

A set of polarizer and analyzer filters allows quick and easy switching from DIC/POL to other observation modes. These filters are designed as sliders and are accessible from both sides of the microscope for maximum convenience.

Optimal DIC with High-Quality Imaging

By using a DIC slider with a single prism, the Nomarski DIC observation mode enables easy switching to other observation modes and simplifies observations across any magnification range, since the DIC prism position remains constant.

Transmitted Light System

ND6, ND25, and LB filters are integrated for sample observation using transmitted light. This provides the best possible image clarity for the intended application when used together with the condenser.

(Agrandar)

Page 14 of 48

Bainline H

Floor Model Grinding and Polishing Machine

PRODUCT CODE: BGH005

Características:

For flat and coarse polishing prior to fine polishing. Samples should be ground with 60, 80, or 120 grit after cutting/mounting.

No tiene un plugin pdf, pero puede descargar el archivo pdf.

Bainline Twin WET

Dual Wheel Grinding and Polishing Machine

PRODUCT CODE: TBG011

Features:

For flat and coarse grinding or polishing prior to fine grinding. Samples should be ground with 60, 80, or 120 grit after cutting/mounting.

No tiene un plugin pdf, pero puede descargar el archivo pdf.

Bainline GP - Grinding and Polishing Machine

PRODUCT CODE: BG010

Features:

.

For flat and coarse grinding prior to fine grinding. Samples should be ground with 60, 80, or 120 grit after cutting/mounting.

No tiene un plugin pdf, pero puede descargar el archivo pdf.

Metallurgical Microscopes - PTS-METCO

Physical Test Solutions (PTS) microscopes provide the ideal complement for any laboratory.

With a microscope designed for every field of application, PTS offers the right microscope for a wide range of analytical tasks.

We offer the following options:

PA53MET Series Scientific Microscopes Motic

Redefining Perfection and Precision

Vertical Inspection Microscopes

Customizable Optical and Illumination Systems.

The reflected light illuminator provides various observation methods such as BF, BF/DF, and DIC to meet all user requirements.

Combined BF/DF and ND Filter Switch

With the BF/DF converter switch located at the front, changing observation modes becomes easier and more convenient. The interlocked ND filter protects the operator’s eyes from sudden brightness changes.

Polarizer and Analyzer Filters

A set of polarizer and analyzer filters allows quick and easy switching from DIC/POL to other observation modes. These filters are designed as sliders and are accessible from both sides of the microscope for maximum convenience.

Optimal DIC with High-Quality Imaging

By using a DIC slider with a single prism, the Nomarski DIC observation mode enables easy switching to other observation modes and simplifies observations across any magnification range, since the DIC prism position remains constant.

Transmitted Light System

ND6, ND25, and LB filters are integrated for sample observation using transmitted light. This provides the best possible image clarity for the intended application when used together with the condenser.

No tiene un plugin pdf, pero puede descargar el archivo pdf.
