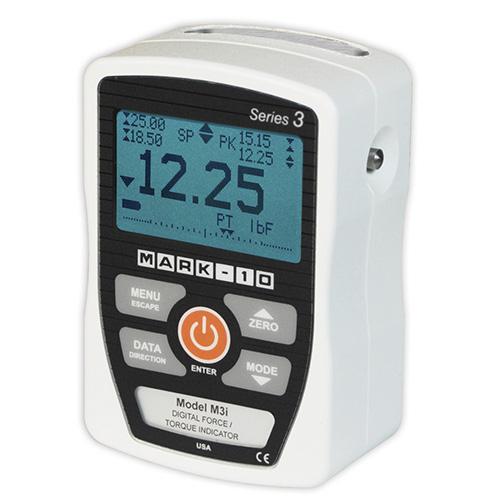

Model M3i Digital Force / Torque Indicator
Basic Force / Torque Indicator
The Model 3i Digital Force/Torque Gauge is designed to operate with a wide range of Mark-10 remote force and torque sensors.
Featuring exclusive Plug & Test® technology, all calibration and configuration data are stored within the smart sensor connector rather than in the indicator itself, enabling true sensor interchangeability. In addition, all sensors are fully compatible with the Advanced Model 5i Force/Torque Indicator.
The 3i shares its menu structure and most specifications with the Series 3 Force Gauges. Its 2,000 Hz sampling rate delivers accurate results across a wide range of testing conditions.
A large backlit graphic LCD displays oversized characters for easy viewing, while an intuitive menu provides quick access to indicator functions and configurable parameters. The display also features an analog load bar for graphical representation of the applied load, as well as programmable set-point indicators for pass/fail testing.
A USB output is provided for data collection purposes. The indicator includes MESUR® Lite data acquisition software.
MESUR® Lite tabulates single-point data, and a one-click export to Excel allows for further data analysis and processing.
Features:
- Interchangeable force and torque sensors via Plug & Test® technology (sensors sold separately)
- High-speed 2,000 Hz sampling rate
- Ultra-compact size
- USB output
- Large backlit graphic display
- Programmable set points with pass/fail indicators
- Live load bar graph with set-point markers
- Peak readings and set points always visible
- Configurable audio alarms and keypad tones
- Programmable automatic shutoff
- Battery or AC-powered operation
- MESUR® Lite data collection software included
- CE certified
(Agrandar)
¿Qué es un Indicador digital básico de fuerza y torque? Un indicador digital básico de fuerza y torque es un dispositivo electrónico que muestra en una pantalla digital las mediciones de fuerza (empuje, tracción) y/o torque (par de giro) captadas por un sensor externo. Es un equipo muy utilizado en laboratorios, producción y control de calidad. Es básico porque solo dá lecturas digitales precisas, Captura de picos, Salida de datos, Configuraciones esenciales.
¿Para qué sirve? Se utiliza para: Medir fuerza de tracción y compresión, Medir torque en giro, Ensayos de calidad de productos, Pruebas con marcos motorizados o manuales, Evaluar resistencia de materiales, Pruebas mecánicas en laboratorios e industria.
